| Physical | |
|---|---|
| Color | Natural |
| Housing Color | Natural, White |
| Housing Material | Nylon |
| Material | Nylon |
| Mount | Cable, Free Hanging |
| Technical | |
| Connector System | Wire-to-Board |
| Connector Type | Receptacle, Socket |
| Contact Current Rating | 6.5 A |
| Current Rating | 6.5 A |
| Fastening Type | Ramp |
| Gender | Receptacle |
| Mating Retention | With |
| Max Operating Temperature | 221 °C |
| Max Voltage Rating (AC) | 250 V |
| Min Operating Temperature | -67 °C |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Operating Supply Voltage | 250 V |
| Orientation | Straight |
| Packaging | Bulk |
| Sealable | No |
| Shrouded | No |
| Termination | Crimp |
| Dimensions | |
| Depth | 16.76 mm |
| Height | 6.35 mm |
| Length | 55.4482 mm |
| Pitch | 3.9624 mm |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 16 AWG |
| Compliance | |
| Approvals | CSA |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| REACH SVHC | No SVHC |
| RoHS | Compliant |
Connectors, Interconnect

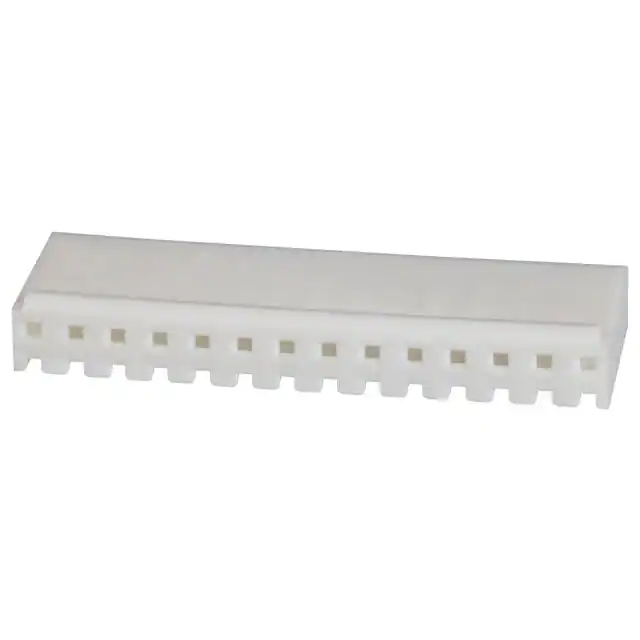

1-640250-4 | HOUSING LOCKING RAMP | TE Connectivity
Availability:
46500 in stock
Connector; Receptacle; 14; Crimp; Locking Ramp; 180 deg; White; SL-156 Housings
$0.40 EA
46500 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
