| Phoenix Contact | |
| Product Category: | Pluggable Terminal Blocks |
| RoHS: | Details |
| Plugs | |
| 8 Position | |
| 2.5 mm | |
| Push-In | |
| Spring Clamp | |
| Cable Mounts | |
| 6 A | |
| 160 V | |
| 24 AWG | |
| 20 AWG | |
| PTSM | |
| Brand: | Phoenix Contact |
| Contact Plating: | Tin |

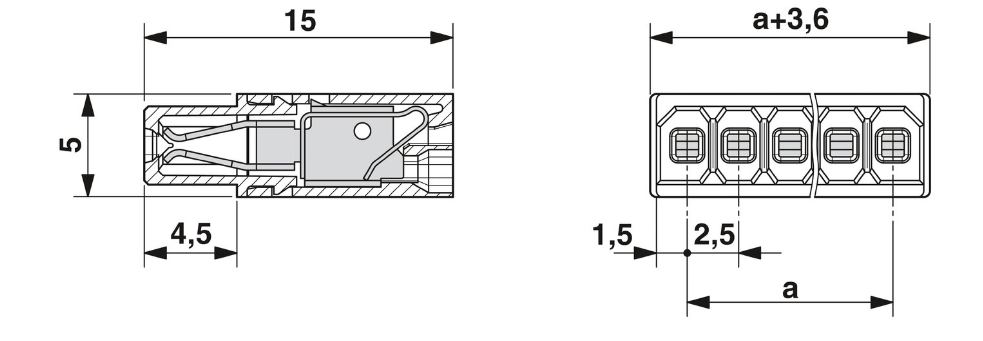

| Height: | 15 mm |
| Length: | 5.2 mm |
| Mounting Angle: | Straight |
| Product Type: | Pluggable Terminal Blocks |
| 100 | |
| Subcategory: | Terminal Blocks |
| Width: | 26.46 mm |
| Unit Weight: | 0.078308 oz |
Connectors, Interconnect
![Phoenix Contact]()
1704861 | PHOENIX CONTACT PTSM – 1704861 | Phoenix Contact
Availability:
500 in stock
PCB connector, nominal cross section: 0.5 mm2, color: white, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: PTSM 0,5/..-P WH, pitch: 2.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PTSM, locking: without, mounting: without, type of packaging: packed in cardboard
$3.28 EA
500 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
