| Physical | |
|---|---|
| Color | Red |
| Contact Material | Brass |
| Contact Plating | Tin |
| Insulation Material | PVC |
| Material | Brass |
| Mount | Adhesive |
| Plating | Tin |
| Terminal Material | Brass |
| Technical | |
| Gender | Female |
| Insulation | Insulated |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -50 °C |
| Orientation | Straight |
| Packaging | Tape & Reel |
| Schedule B | 8536904000 |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Voltage Rating (DC) | 600 V |
| Dimensions | |
| Wire/Cable Gauge | 18 AWG |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Compliance | |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Non-compliant |
| REACH SVHC | Unknown |
| RoHS | Compliant |
Interconnect, Terminals

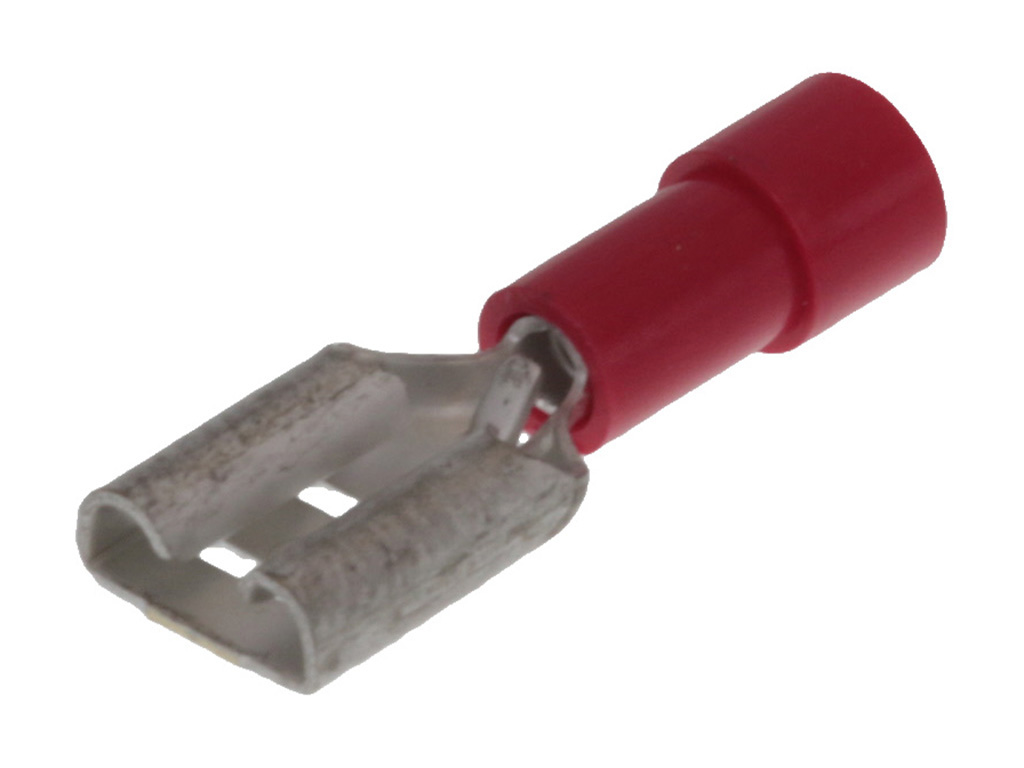

19017-0017 | IFQD,22-18GA,.250x.032 PVC Ins | Molex
Availability:
750 in stock
Quick Disconnect Terminal 18-22AWG F 22.35mm 7.62mm Electro-Tin Adhesive Tape and Reel
$0.40 EA
750 in stock
