| Physical | |
|---|---|
| Body Material | Copper |
| Color | Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| Insulation Material | Thermoplastic |
| Mount | Box |
| Plating | Tin |
| Technical | |
| Insulation | Insulated |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Contacts | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Schedule B | 8536904000 |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Voltage Rating (DC) | 600 V |
| Dimensions | |
| Diameter | 7.11 mm |
| Length | 38.1 mm |
| Wire/Cable Gauge | 22 AWG |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Compliance | |
| ELV | Compliant |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| RoHS | Compliant |
Interconnect, Terminals

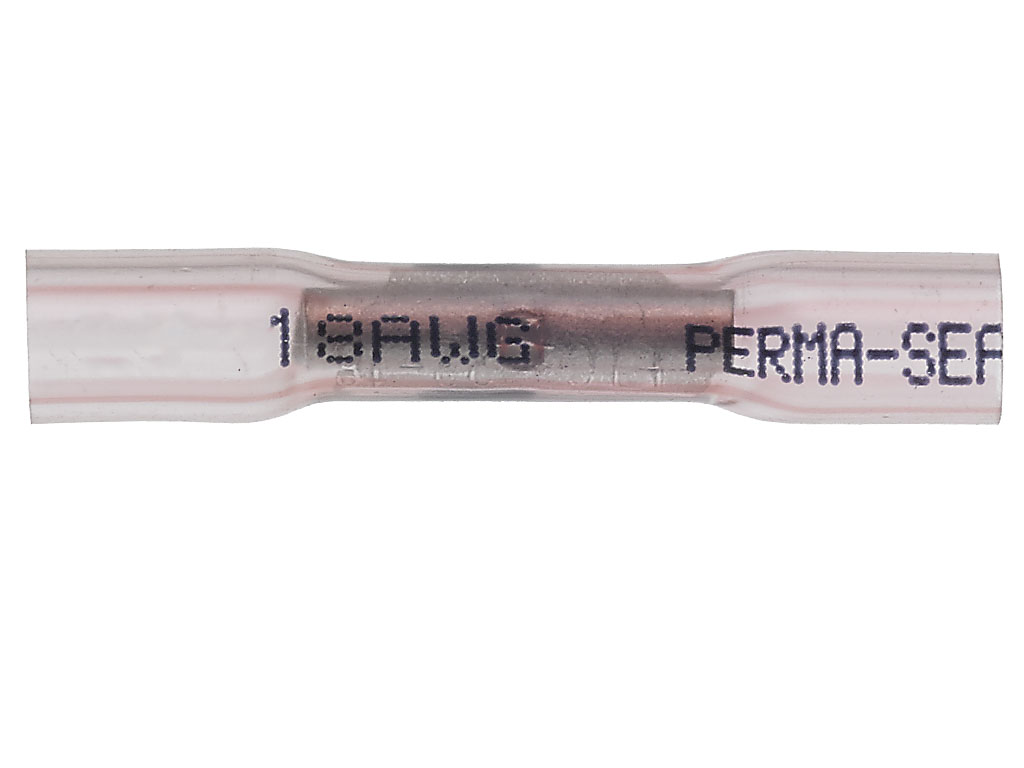

19164-0013 | Perma Seal Butt Splice,22-18GA | Molex
Availability:
3200 in stock
Splice Terminal 18-22AWG Copper Red 38.1mm Tin Perma-Seal™ Bag
$0.28 EA
3200 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
