| Physical | |
|---|---|
| Body Material | Copper |
| Body Plating | Tin |
| Color | Blue |
| Contact Material | Copper |
| Contact Plating | Tin |
| Material | Copper |
| Mount | Free Hanging |
| Plating | Tin |
| Technical | |
| Gender | Female |
| Heavy Duty | No |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Material Thickness | 790 µm |
| Number of Holes | 1 |
| Orientation | Straight |
| Packaging | Tape & Reel (TR) |
| Sealable | No |
| Termination | Crimp |
| Dimensions | |
| Depth | 7.92 mm |
| Inside Diameter | 1.55 mm |
| Length | 15.7734 mm |
| Stud Diameter | 5 mm |
| Thickness | 787.4 µm |
| Tongue Thickness | 790 µm |
| Width | 7.92 mm |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 22 AWG |
| Compliance | |
| ELV | Compliant |
| Government Qualified | Yes |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| RoHS | Compliant |
Interconnect, Terminals

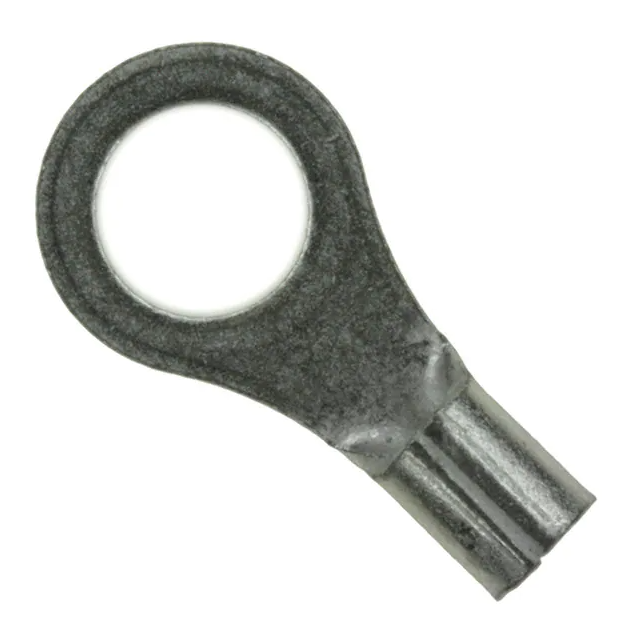

2-34112-2 | Terminal, Ring #10 Stud, 18 AW | TE Connectivity
Availability:
108426 in stock
Terminal Ring, 22-16AWG, Size 10, Crimp, Female, Uninsulated, Solistrand Series
$0.09 EA
108426 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
