| Physical | |
|---|---|
| Body Material | Copper |
| Body Plating | Tin |
| Color | Yellow |
| Contact Material | Copper |
| Contact Plating | Tin |
| Insulation Material | Vinyl |
| Material | Copper |
| Mount | Free Hanging |
| Plating | Tin |
| Technical | |
| Gender | Female |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Material Thickness | 990.6 µm |
| Number of Holes | 1 |
| Orientation | Straight |
| Packaging | Tape & Reel (TR) |
| Plating Thickness | 2.54 µm |
| Schedule B | 8536904000 |
| Sealable | No |
| Termination | Crimp |
| Dimensions | |
| Depth | 9.52 mm |
| Insulation Diameter | 6.35 mm |
| Length | 27.94 mm |
| Stud Diameter | 5 mm |
| Stud Size | M5 |
| Thickness | 990.6 µm |
| Tongue Thickness | 990 µm |
| Wire/Cable Diameter | 6.35 mm |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 10 AWG |
| Compliance | |
| ELV | Compliant |
| Government Qualified | No |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| RoHS | Compliant |
Interconnect, Terminals
2-34854-1 | TERMINAL PG,R 12-10 AWG | TE Connectivity
Availability:
160300 in stock

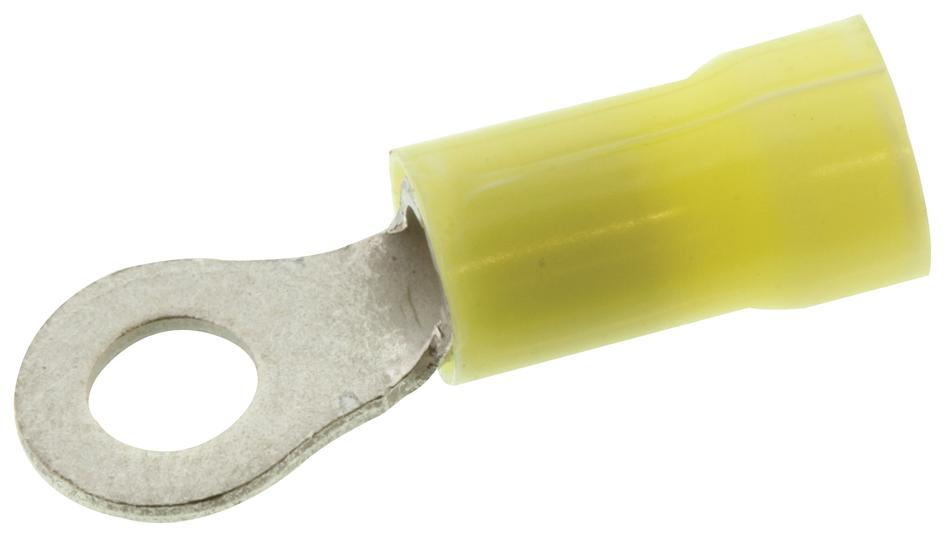

PIDG Ring Tongue Terminal 10-12AWG Copper Yellow 27.89mm Tin T/R
$0.27 EA
160300 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
