| Physical | |
|---|---|
| Body Material | Brass |
| Body Plating | Tin |
| Color | Red |
| Contact Material | Brass |
| Contact Plating | Tin |
| Insulation Material | Nylon |
| Material | Brass |
| Mount | Free Hanging |
| Plating | Tin |
| Terminal Material | Brass |
| Technical | |
| Gender | Male |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Orientation | Straight |
| Packaging | Cut Tape (CT) |
| Sealable | No |
| Termination | Tab |
| Wire/Cable Type | Discrete |
| Dimensions | |
| Depth | 11.38 mm |
| Insulation Diameter | 3.429 mm |
| Length | 20.1422 mm |
| Mating Tab Width | 4.75 mm |
| Tab Thickness | 812.8 µm |
| Tab Width | 4.7498 mm |
| Wire/Cable Diameter | 3.43 mm |
| Wire/Cable Gauge | 22 AWG |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Compliance | |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| RoHS | Compliant |
Interconnect, Terminals

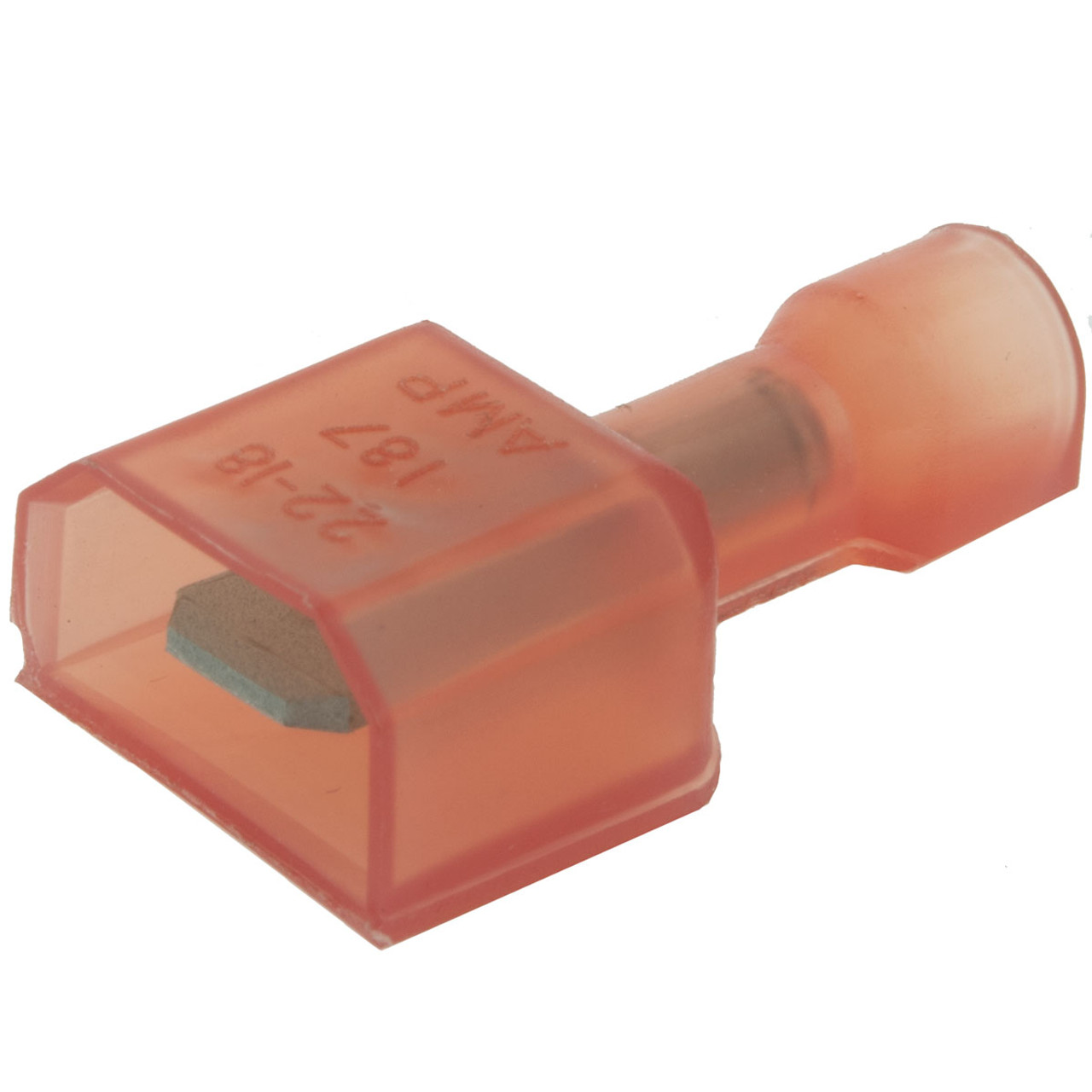

2-521104-2 | REEL, TAB ASSY U-F 187 X 032 2 | TE Connectivity
Availability:
5000 in stock
Quick Disconnect Terminal 18-22AWG RCP 20.14mm 11.38mm Tin Strip
$0.17 EA
5000 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
