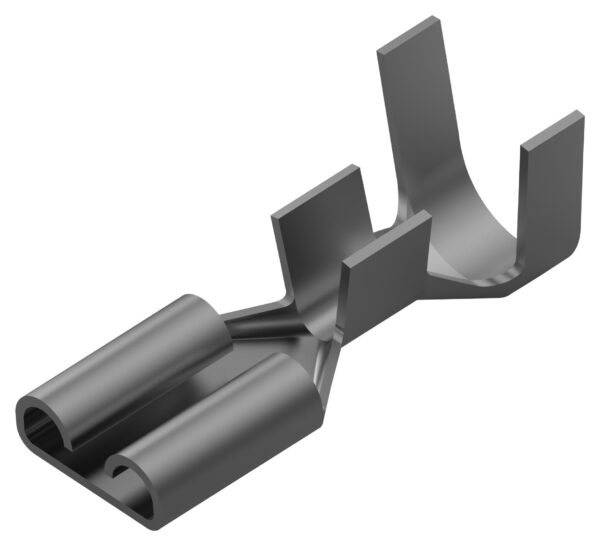

250 FASTON REC 16-12 AWG TPBR

TE Connectivity
Availability:

1406595 in stock


TE Internal #: 41728
TE Internal Description: 250 FASTON REC 16-12 AWG TPBR

Quick Disconnect Terminal Type : Receptacle
Wire Size (AWG): 16 – 12
Wire Size (mm²): 1.31 – 3.31
Mating Tab Width : 6.35 mm [ .25 in ]
Mating Tab Thickness : .81 mm [ .032 in ]

$0.06 EA

1406595 in stock

Product Type Features

Insertion Force : Normal
Sealable : No
Wire/Cable Type : Regular Wire
Terminates To : Wire & Cable
Configuration Features

Connection Capacity : Single

Contact Features

Quick Disconnect Terminal Type : Receptacle
Mating Tab Width : 6.35 mm [ .25 in ]
Mating Tab Thickness : .81 mm [ .032 in ]
Terminal Orientation : Straight
Contact Base Material : Brass
Terminal Plating Material : Tin
Crimp Type : F-Crimp
Barrel Type : Open
Mechanical Attachment

Wire Insulation Support : With
Mating Retention Type : Dimple

Dimensions

Wire Size (AWG): 16 – 12
Wire Size (mm²): 1.31 – 3.31
Receptacle Terminal Stock Thickness : .43 mm [ .017 in ]
Overall Length : 20.93 mm [ .82 in ]
Accepts Wire Insulation Diameter Range : 5.33 – 6.73 mm [ .21 – .265 in ]

Usage Conditions

Insulation Option : Uninsulated
Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]

Industry Standards

CSA Certified : Yes
UL Rating : Listed

Packaging Features

Packaging Method : Strip/Reel
Packaging Quantity : 6000

Other

Line : Premier

SKU: AMP-41728 Categories: ,
Weight .01 lbs
Dimensions .02 × .02 × .02 in
