| Physical | |
|---|---|
| Body Material | Brass |
| Body Plating | Tin |
| Color | Blue |
| Contact Material | Brass |
| Contact Plating | Tin |
| Insulation Material | Nylon |
| Material | Brass |
| Mount | Free Hanging |
| Plating | Tin |
| Terminal Material | Brass |
| Technical | |
| Connector Type | Receptacle |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Max Operating Temperature | 105 °C |
| Orientation | Straight |
| Packaging | Cut Tape (CT) |
| Sealable | No |
| Termination | Receptacle |
| Wire/Cable Type | Discrete |
| Dimensions | |
| Depth | 8.53 mm |
| Insulation Diameter | 6.604 mm |
| Length | 23.749 mm |
| Mating Tab Width | 4.75 mm |
| Tab Thickness | 812.8 µm |
| Tab Width | 4.7498 mm |
| Wire/Cable Diameter | 6.6 mm |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 14 AWG |
| Compliance | |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| RoHS | Compliant |
Interconnect, Terminals

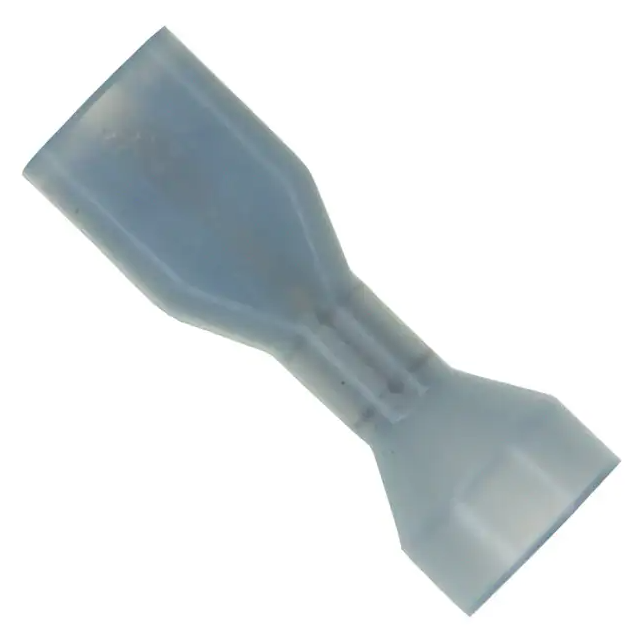

3-520276-2 | 187 ULTRA FAST 16-14 TPBR | TE Connectivity
Availability:
18900 in stock
Quick Disconnect Terminal 14-16AWG Brass Blue RCP 23.75mm Tin Reel Automotive
$0.10 EA
18900 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
