| Physical | |
|---|---|
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Nickel |
| Housing Color | Black |
| Housing Material | Polyester |
| Material | Polyester |
| Mount | Free Hanging |
| Number of Pins | 3 |
| Technical | |
| Connector Type | Power, Rectangular, Socket |
| Contact Resistance | 10 MΩ |
| Current Rating | 5 A |
| Gender | Receptacle |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Schedule B | 8536695050 |
| Termination | Crimp |
| Voltage Rating | 250 V |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 250 V |
| Working Voltage | 250 V |
| Dimensions | |
| Depth | 14 mm |
| Height | 5.3 mm |
| Length | 9.85 mm |
| Pitch | 3 mm |
| Compliance | |
| Approvals | CSA, TUV, UL |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| RoHS | Compliant |
Connectors, Interconnect

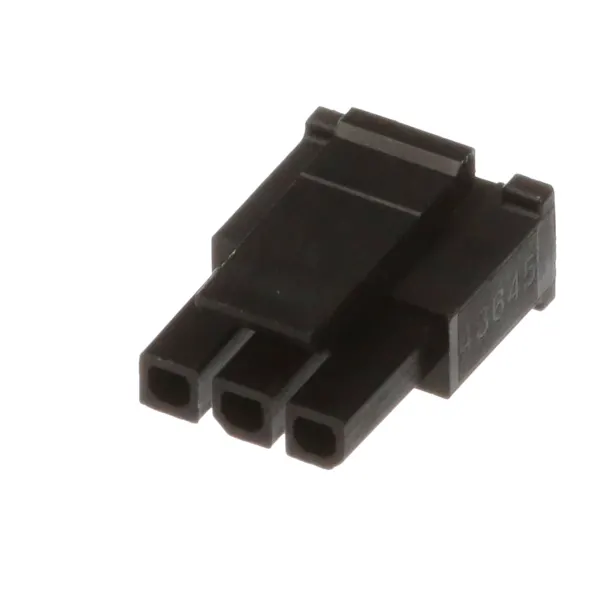

43645-0300 | Micro-Fit 3.0 Receptacle Housi | Molex
Availability:
4645 in stock
Micro-Fit 3.0 Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen, Black
$0.16 EA
4645 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
