| Physical | |
|---|---|
| Body Material | Brass |
| Body Plating | Tin |
| Contact Material | Brass |
| Contact Plating | Tin |
| Material | Brass |
| Plating | Tin |
| Technical | |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Orientation | Straight |
| Packaging | Cut Tape |
| Sealable | No |
| Termination | Receptacle |
| Wire/Cable Type | Discrete |
| Dimensions | |
| Depth | 3.81 mm |
| Insulation Diameter | 4.318 mm |
| Length | 16.13 mm |
| Mating Tab Width | 2.794 mm |
| Tab Thickness | 508 µm |
| Tab Width | 2.794 mm |
| Wire/Cable Diameter | 4.32 mm |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 20 AWG |
| Compliance | |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
Interconnect, Terminals

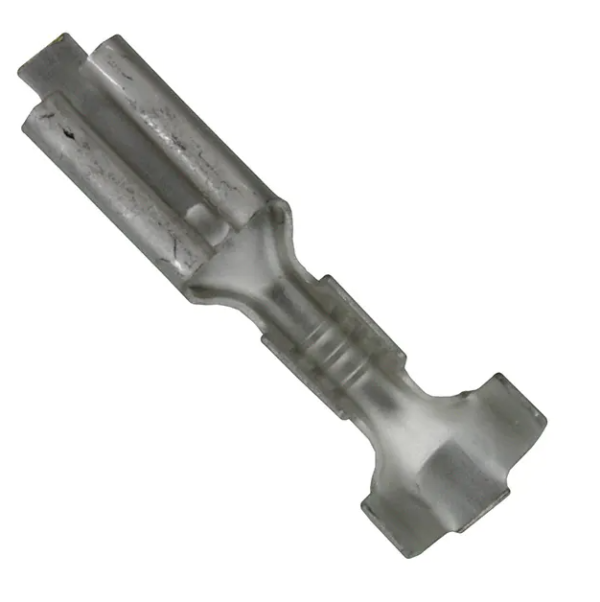

62191-1 | REEL, 110 x .020 Faston Non-In | TE Connectivity
Availability:
120068 in stock
Quick Disconnect Terminal 16-20AWG RCP 16.12mm 3.81mm Tin Automotive Reel
$0.07 EA
120068 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
