| Physical | |
|---|---|
| Body Material | Brass |
| Body Plating | Tin |
| Color | Yellow |
| Contact Material | Brass |
| Contact Plating | Tin |
| Insulation Material | Nylon |
| Material | Brass |
| Mount | Free Hanging |
| Plating | Tin |
| Technical | |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Orientation | Straight |
| Packaging | Cut Tape (CT) |
| Sealable | No |
| Termination | Receptacle |
| Dimensions | |
| Depth | 5.84 mm |
| Insulation Diameter | 2.08 mm |
| Length | 17.811 mm |
| Mating Tab Width | 4.75 mm |
| Tab Length | 6.35 mm |
| Tab Thickness | 508 µm |
| Tab Width | 4.7498 mm |
| Wire/Cable Gauge | -24 AWG |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 24 AWG |
| Compliance | |
| ELV | Compliant |
| Lead Free | Not Applicable |
| Radiation Hardening | No |
| RoHS | Compliant |
Interconnect, Terminals

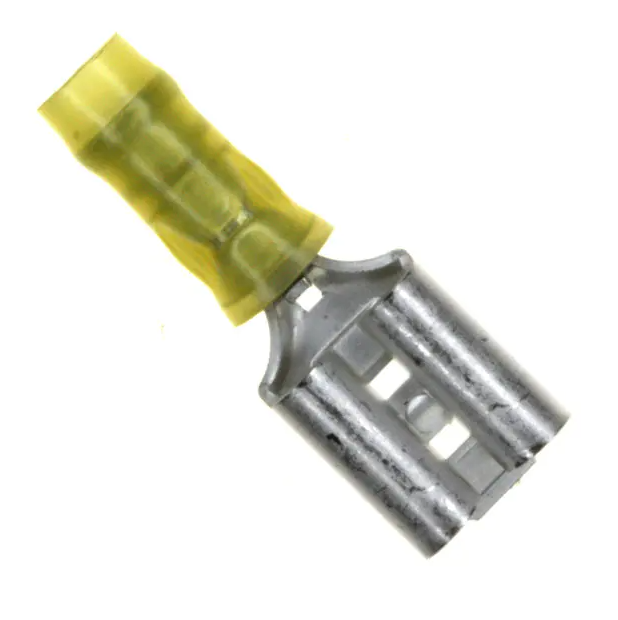

641321-2 | PIDG FASTON, 26-24 awg, insula | TE Connectivity
Availability:
500 in stock
Quick Disconnect Terminal 24-26AWG Brass Yellow RCP 18.28mm Tin Package
$0.34 EA
500 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
