| Physical | |
|---|---|
| Contact Material | Brass |
| Contact Plating | Gold, Tin |
| Material | Brass |
| Mount | Cable |
| Number of Terminals | 1 |
| Plating | Gold |
| Underplate Material | Nickel |
| Technical | |
| Circuit Application | Signal |
| Connector Type | Socket |
| Contact Gender | Female |
| Contact Style | Socket |
| Gender | Female |
| Max Current Rating | 13 A |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Ports | 1 |
| Orientation | Straight |
| Packaging | Cut Tape |
| Plating Thickness | 380 nm |
| Schedule B | 8536904000 |
| Termination | Crimp |
| Test Current | 13 A |
| Wire/Cable Type | Discrete |
| Dimensions | |
| Depth | 3.68 mm |
| Height | 3.05 mm |
| Insulation Diameter | 2.54 mm |
| Wire/Cable Gauge | 16 AWG |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 16 AWG |
| Compliance | |
| ELV | Compliant |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
Connectors, Interconnect

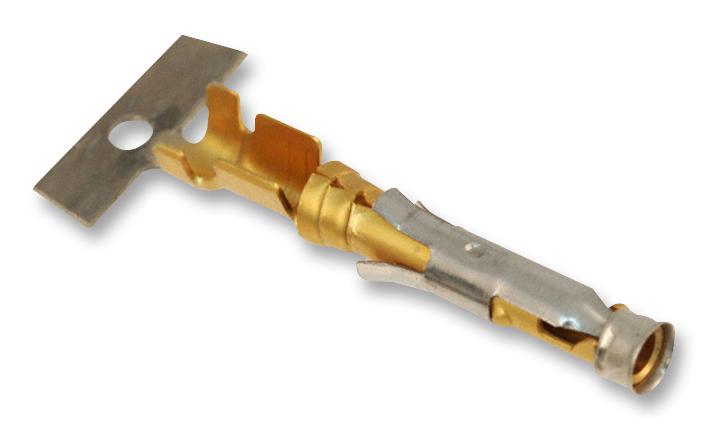

66100-8 | REEL, CONT CONN III+ SKT, 18-1 | TE Connectivity
Availability:
870 in stock
Connector Accessory, 0.08in Min Cable Dia, 0.1in Max Cable Dia, Contact, Brass
$0.00 EA
870 in stock
| Digi-Key Part Number | |
|---|---|
| Manufacturer | |
| Manufacturer Part Number |
