| Physical | |
|---|---|
| Contact Material | Copper |
| Contact Plating | Silver |
| Material | Copper |
| Mount | Cable |
| Plating | Silver |
| Technical | |
| Circuit Application | Power |
| Connector Type | Socket |
| Contact Gender | Female |
| Contact Style | Socket |
| Current Rating | 35 A |
| Gender | Female |
| Orientation | Straight |
| Shielding | Unshielded |
| Termination | Crimp |
| Test Current | 15 A |
| Wire/Cable Type | Discrete |
| Dimensions | |
| Depth | 7.11 mm |
| Height | 7.62 mm |
| Insulation Diameter | 5.59 mm |
| Length | 32.18 mm |
| Wire/Cable Gauge | 10 AWG |
| Compliance | |
| ELV | Compliant |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| RoHS | Compliant |
Contacts, Interconnect

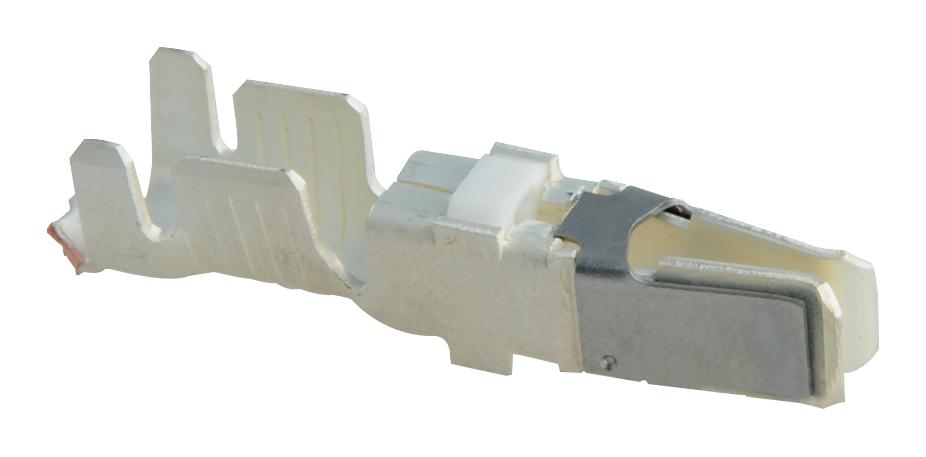

66741-9 | TYPE XII FEMALE CONT (STRIP) | TE Connectivity
Availability:
1250 in stock
MultiMate Type XII Series 10 AWG Discrete Wire Crimp Female Socket
$3.88 EA
1250 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
| Digi-Key Part Number | |
| Manufacturer | |
| Manufacturer Part Number |
