| Physical | |
|---|---|
| Contact Material | Bronze |
| Contact Plating | Tin |
| Mount | Cable |
| Technical | |
| Connector Type | Connector, PCB, Signal |
| Current Rating | 30 A |
| Gender | Receptacle |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -40 °C |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Orientation | Straight |
| Packaging | Cut Tape |
| Schedule B | 8536904000 |
| Sealable | No |
| Shielding | Unshielded |
| Termination | Crimp |
| Dimensions | |
| Depth | 3.6 mm |
| Height | 4.15 mm |
| Insulation Diameter | 2.3 mm |
| Length | 18.8 mm |
| Mating Tab Width | 2.794 mm |
| Tab Thickness | 800 µm |
| Wire/Cable Gauge | 20 AWG |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 17 AWG |
| Compliance | |
| ELV | Compliant |
| Lead Free | Not Applicable |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| RoHS | Compliant |
Interconnect, Terminals
927771-3 | Reel, Contact Receptacle Femal | TE Connectivity
Availability:
6100 in stock

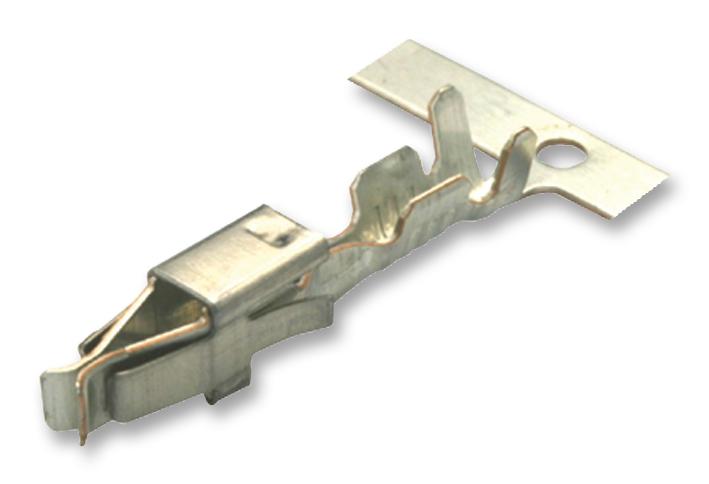

Junior Power Timer Series 20-17 AWG Straight Receptacle Crimp Terminal
$0.32 EA
6100 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
