Get control of your communication and control applications
Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
Communication and Control Typical applications:
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Low capacitance cables for improved transmission distances and signal integrity.
| Diameters (In) | ||||||||||||||||||||||||||||||||

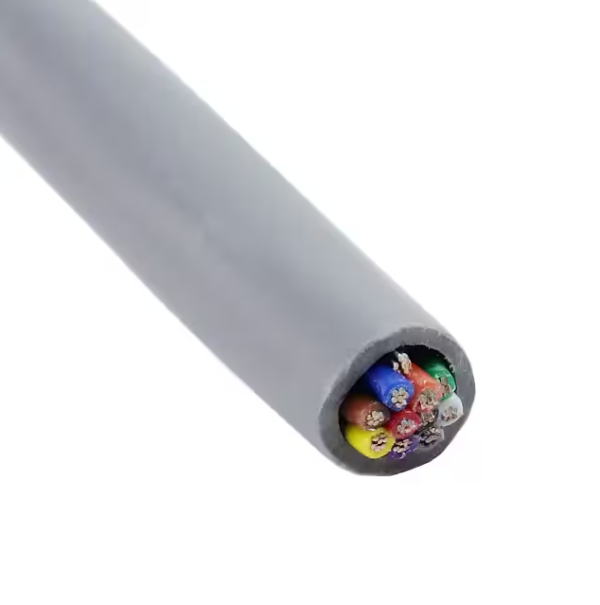

| 1) Component 1 | 12 X 1 COND | |||||||||||||||||||||||||||||||
| a) Conductor | 22 (7/30) AWG Tinned Copper | 0.030 | ||||||||||||||||||||||||||||||
| b) Insulation | 0.010″ Wall, Nom. PVC, Semi Rigid | 0.050 | ||||||||||||||||||||||||||||||
| (1) Color Code | Alpha Wire Color Code D | |||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
| 2) Cable Assembly | 12 Components Cabled | |||||||||||||||||||||||||||||||
| a) Twists: | 4.0 Twists/foot (min) | |||||||||||||||||||||||||||||||
| b) Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER | |||||||||||||||||||||||||||||||
| 3) Shield: | Alum/Mylar Tape, 25% Overlap, Min. | |||||||||||||||||||||||||||||||
| a) Foil Direction | Foil Facing Out | |||||||||||||||||||||||||||||||
| b) Drain Wire | 22 (7/30) AWG Tinned Copper | |||||||||||||||||||||||||||||||
| 4) Jacket | 0.032″ Wall, Nom.,PVC | 0.276 (0.291 Max.) | ||||||||||||||||||||||||||||||
| a) Color(s) | SLATE | |||||||||||||||||||||||||||||||
