| No. of Cond. | 6 |
| AWG Size | 24 |
| Cond. Material | Tinned Copper |
| Conductor Stranding | 7/32 |
| CSA Type | CMG |
| Drain Wire | Stranded Tinned Copper Drain Wire |
| Insul. Material | Semi-Rigid Polyvinylchloride (SR-PVC) |
| Jacket Material | Polyvinylchloride (PVC) |
| Jacket Thickness | 0.032 |
| Max. Temp | 80ËšC |
| Min. Temp | -20ËšC |
| NEC Type | CMR |
| No. of Strands | 7 |
| Nom. Cap. (C-C) | 30.0 |
| Nom. Cap. (C-SC) | 55.0 |
| Nom. DCR of Cond. | 26.0 |
| Nom. DCR of Shld. | 7.2 |
| Nom. Insul. Thick. (in) | 0.010 |
| Nom. O.D. (in) | 0.2010 |
| Shield | Overall Foil Shield |
| Shield Coverage | 25% overlap, foil facing out |
| Shield Material | Aluminum/Polyester Foil |
| Strand Size | 32 |
| UL Style | 2464 |
| Voltage | 300 |
Multiconductor Cable

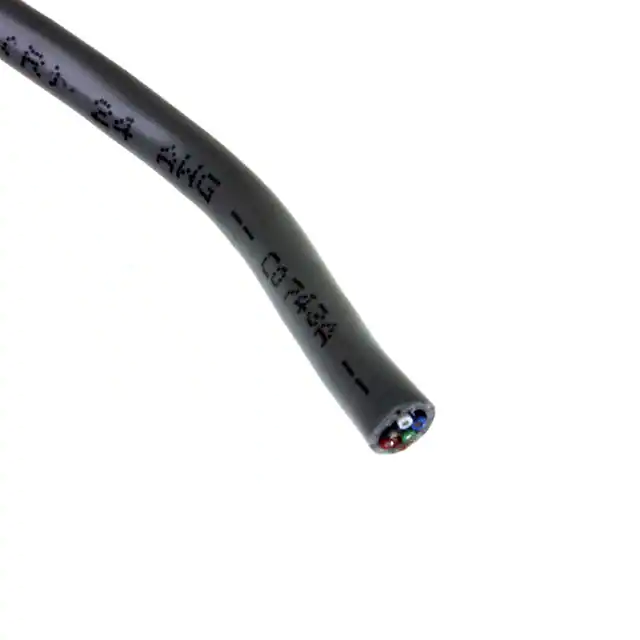

![Carol Brand/General Cable]()
Carol Brand/General Cable C0743A
Availability:
700 in stock
Multi-Conductor, Foil Shield, UL 2464, NEC Type CMR (UL) c(UL), CSA CMG
- Applications:
- Computer interconnections
- Data transmission
- Control circuits
- Industrial equipment control
- Suitable for EIA RS-232 applications
- Suggested voltage rating: 300 volts
$0.29 FT
700 in stock
| Weight | 0.13 lbs |
|---|---|
| Dimensions | 1 × 0.125 × 0.125 in |
