| Physical | |
|---|---|
| Color | Natural |
| Housing Color | White |
| Housing Material | Nylon |
| Mount | Free Hanging |
| Technical | |
| Connector Type | Receptacle, Socket |
| Fastening Type | Latch |
| Max Current Rating | 3 A |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (AC) | 250 V |
| Min Operating Temperature | -25 °C |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Termination | Crimp |
| Dimensions | |
| Depth | 12 mm |
| Length | 27.2 mm |
| Pitch | 2.4892 mm |
| Row Spacing | 2.4892 mm |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 20 AWG |
| Compliance | |
| Lead Free | Lead Free |
| RoHS | Compliant |
Connectors, Interconnect
![JST]()

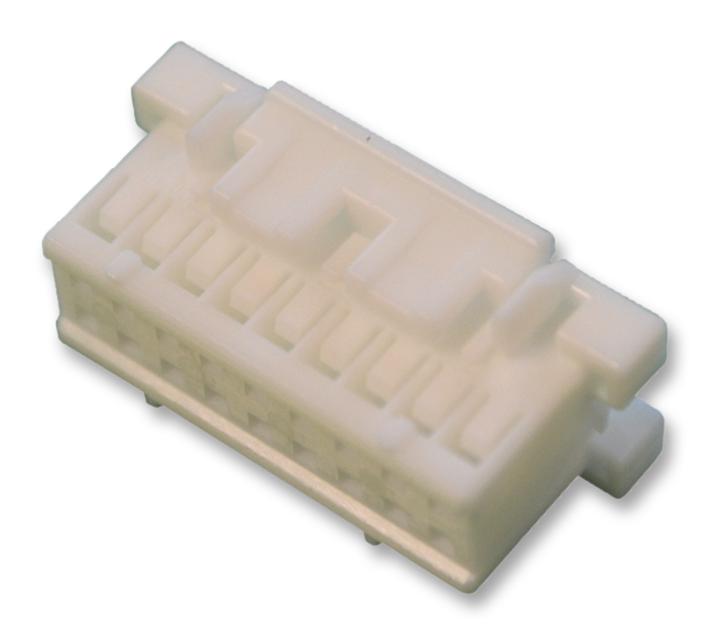

XADRP-18V | CONN HOUSING XAD 18POS DL 2.5M | JST
Availability:
835 in stock
Connector Housing, XAD Series, 18 Position, 2.50mm, Free Hanging, Crimp, Latch Lock, Natural
$1.92 EA
835 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
