| Physical | |
|---|---|
| Body Material | Copper |
| Body Plating | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Mount | Free Hanging |
| Technical | |
| Insulation | Non-Insulated |
| Packaging | Bulk |
| Termination | Standard |
| Dimensions | |
| Depth | 6.5 mm |
| Length | 14.224 mm |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Compliance | |
| RoHS | Compliant |
Interconnect, Terminals

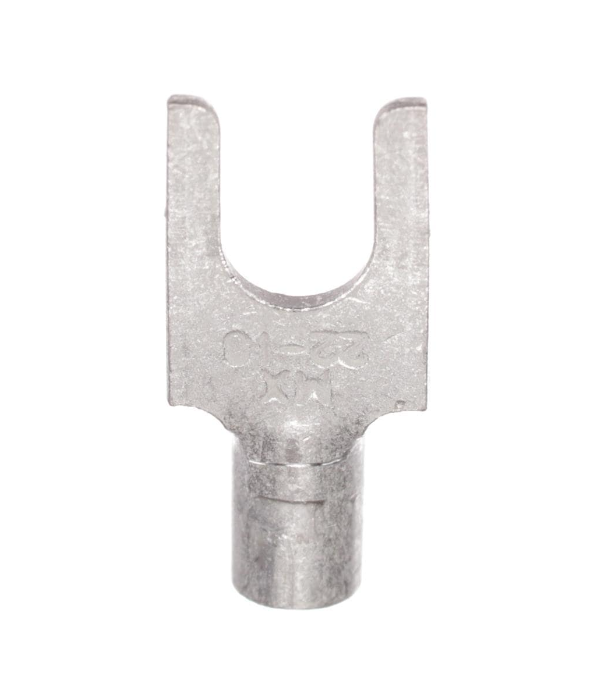

19129-0038 | Spade Block,22-18GA,#5-6,Krimp | Molex
Availability:
15950 in stock
Block Spade Tongue Terminal 18-22AWG 14.2mm 6.5mm Tin Mylar Tape
$0.11 EA
15950 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
| Digi-Key Part Number | |
| Manufacturer | |
| Manufacturer Part Number |
