| Physical | |
|---|---|
| Body Material | Copper |
| Body Plating | Tin |
| Color | Yellow |
| Contact Material | Copper |
| Contact Plating | Tin |
| Plating | Tin |
| Technical | |
| Insulation | Fully Insulated Heat Shrink |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Wire Entries | 2 |
| Orientation | Straight |
| Packaging | Box |
| Termination | Crimp |
| Voltage Rating (DC) | 600 V |
| Dimensions | |
| Length | 43.18 mm |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 10 AWG |
| Compliance | |
| Radiation Hardening | No |
| RoHS | Compliant |
Interconnect, Terminals
191640077 | Perma Seal Step Down,16-14/12- | Molex
Availability:
2180 in stock

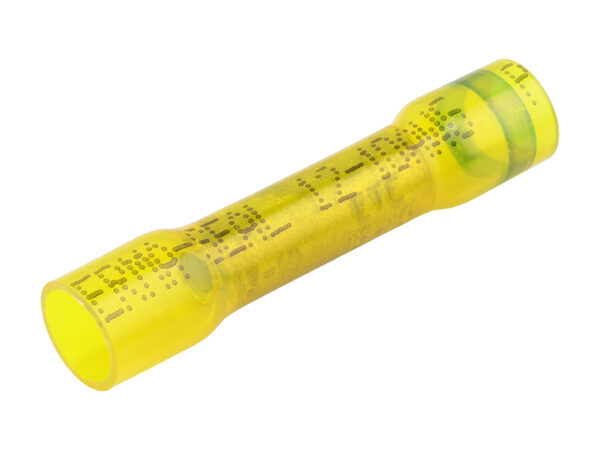

Perma-Seal Step Down Butt Splice from 10-12 AWG to 14-16 AWG, Bag
$0.69 EA
2180 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
