| Physical | |
|---|---|
| Contact Material | Brass |
| Contact Plating | Tin |
| Material | Brass |
| Mount | Free Hanging |
| Plating | Tin |
| Technical | |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Material Thickness | 457.2 µm |
| Packaging | Cut Tape (CT) |
| Sealable | No |
| Termination | Standard |
| Dimensions | |
| Inside Diameter | 1.65 mm |
| Insulation Diameter | 3.56 mm |
| Length | 20.27 mm |
| Stud Diameter | 4.82 mm |
| Tongue Thickness | 11.684 mm |
| Wire/Cable Diameter | 3.56 mm |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 14 AWG |
| Compliance | |
| ELV | Compliant |
| Government Qualified | No |
| Lead Free | Not Applicable |
| Radiation Hardening | No |
| RoHS | Compliant |
Interconnect, Terminals

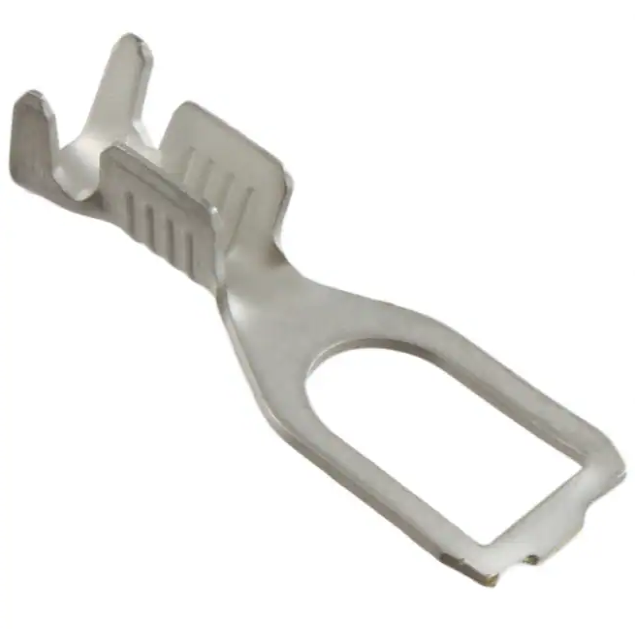

60775-2 | Spade Tongue Terminal #10 14-1 | TE Connectivity
Availability:
13500 in stock
Spade Tongue Terminal 14-18AWG Brass 20.27mm Tin Reel Automotive
$0.09 EA
13500 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
