| MOUNTING HOLE DIAMETER |
PART NO. | DESCRIPTION

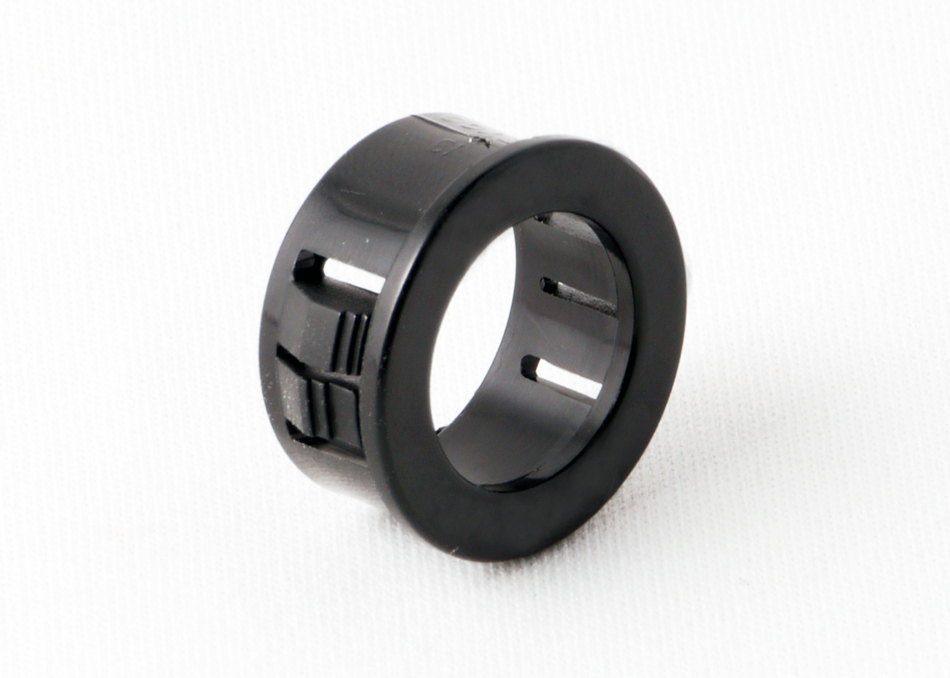

SB 1750-22 |
PART DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Black
2300 |
A Inside Diameter |
B Head Diameter |
C Overall Height |
||||||||
| in.
1.75 |
mm.
44.5 |
in.
1.38 |
mm.
34.9 |
in.
1.88 |
mm.
47.6 |
in.
.45 |
mm.
11.5 |
||||
- Convert raw-edged holes to smooth, neat, insulated holes.
- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.
- Locking fingers snap into holes with fingertip pressure.
- Locking fingers in fractional increments up to the maximum panel thickness.
- Withstand a push back force of 35 pounds.
- Available in multiple sizes for use in .250″ (6,4 mm) to 6.00″ (152,4 mm) diameter holes.
- We offer the following brass-colored parts for lamp and lighting applications:
Part No. 2012, SB 312-3 Brass
Part No. 2033, SB 375-4 Brass
Part No. 2041, SB 437-4 Brass
| Material | Nylon 6/6 | |
|---|---|---|
| Certifications |  |
Recognized under the Component Program of Underwriters’ Laboratories File E15331 |
 |
Certified by the Canadian Standards Association File 8919 | |
| Flammability Rating | 94V-2 | |
| Temperature Range | -.4°F (-18°C) to 221°F (105°C) |
