TYPE
|
DESCRIPTION
|
|
|---|---|---|
|
Category
|
Voltage Regulator |
|
| MFR | National Semiconductor | |
|
|
|
|
|
|
||
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Fixed
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
35V
|
|
|
Voltage – Output (Min/Fixed)
|
5V
|
|
|
Voltage – Output (Max)
|
–
|
|
|
Voltage Dropout (Max)
|
2V @ 1A
|
|
|
Current – Output
|
1.5A
|
|
|
Current – Quiescent (Iq)
|
8 mA
|
|
|
PSRR
|
80dB (120Hz)
|
|
|
Control Features
|
–
|
|
|
Protection Features
|
Over Temperature, Short Circuit
|
|
|
Operating Temperature
|
0°C ~ 125°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
TO-220-3
|
|
|
Supplier Device Package
|
TO-220-3
|
|
|
Base Product Number
|
LM340
|
Power Products

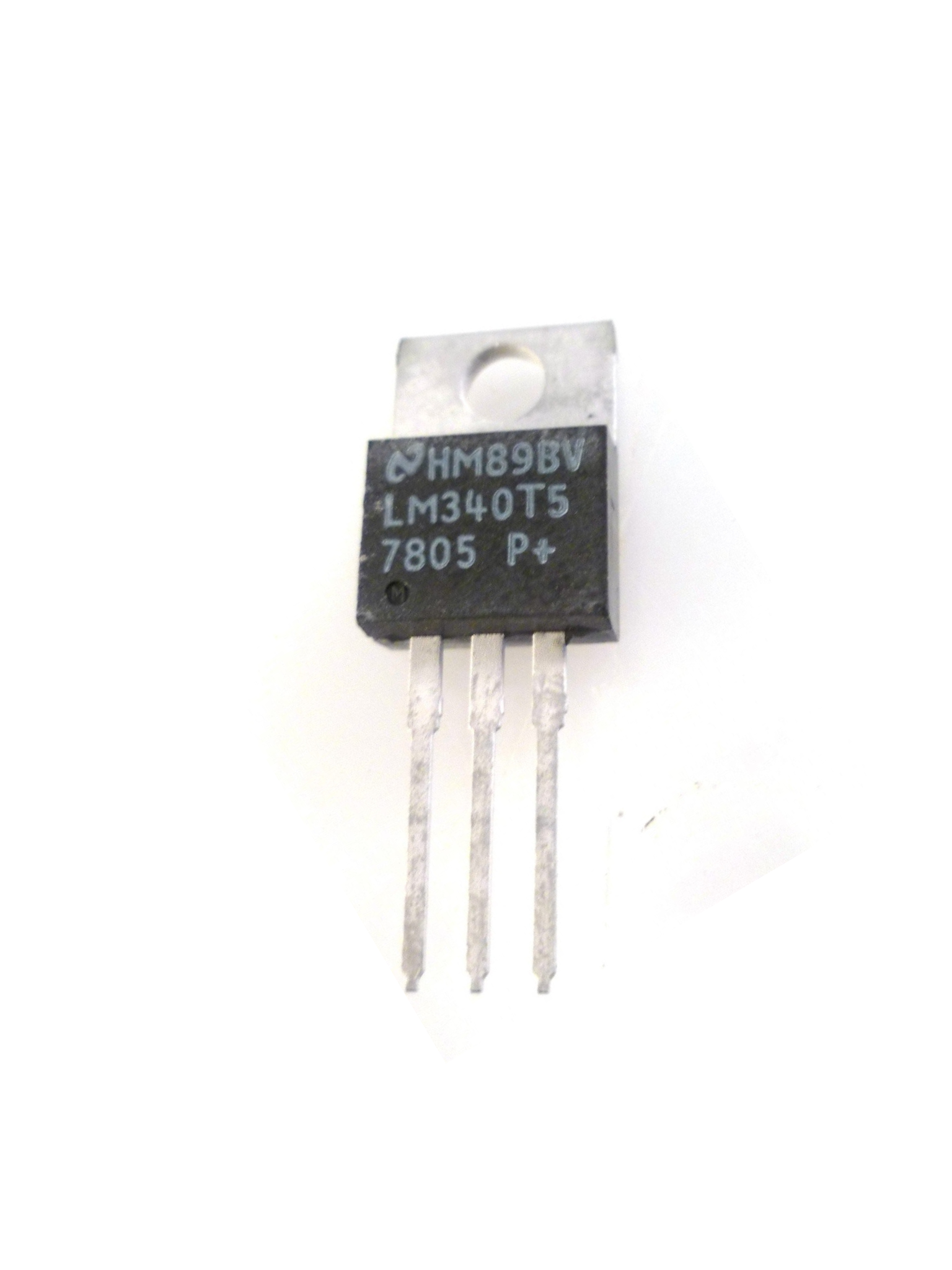

National Semiconductor Voltage Regulator LM340T5 7805 P+
Availability:
820 in stock
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220-3 5V
$2.50
820 in stock
| Weight | 0.00507063 lbs |
|---|---|
| Dimensions | 0.40472441 × 0.18976378 × 0.11614173 in |
