| Physical | |
|---|---|
| Color | Natural, White |
| Housing Color | Beige |
| Housing Material | Nylon |
| Material | Nylon |
| Mount | Cable |
| Number of Pins | 10 |
| Technical | |
| Connector Type | Socket |
| Current Rating | 13 A |
| Gender | Receptacle |
| Max Current Rating | 9 A |
| Max Operating Temperature | 105 °C |
| Max Voltage Rating (AC) | 600 V |
| Max Voltage Rating (DC) | 600.6 kV |
| Min Operating Temperature | -40 °C |
| Number of Contacts | 12 |
| Number of Lines | 2 |
| Number of Poles | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Schedule B | 8536695050 |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Voltage Rating (AC) | 600 V |
| Voltage Rating (DC) | 600 V |
| Dimensions | |
| Depth | 19.6 mm |
| Height | 15.1 mm |
| Length | 26.4 mm |
| Pitch | 4.2 mm |
| Row Spacing | 4.2 mm |
| Width | 15.1 mm |
| Compliance | |
| Approvals | CSA, TUV, UL |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| RoHS | Compliant |
Connectors, Interconnect
39-01-2125 | 12 Poss Conn Recept 4.20mm (.1 | Molex
Availability:
3550 in stock

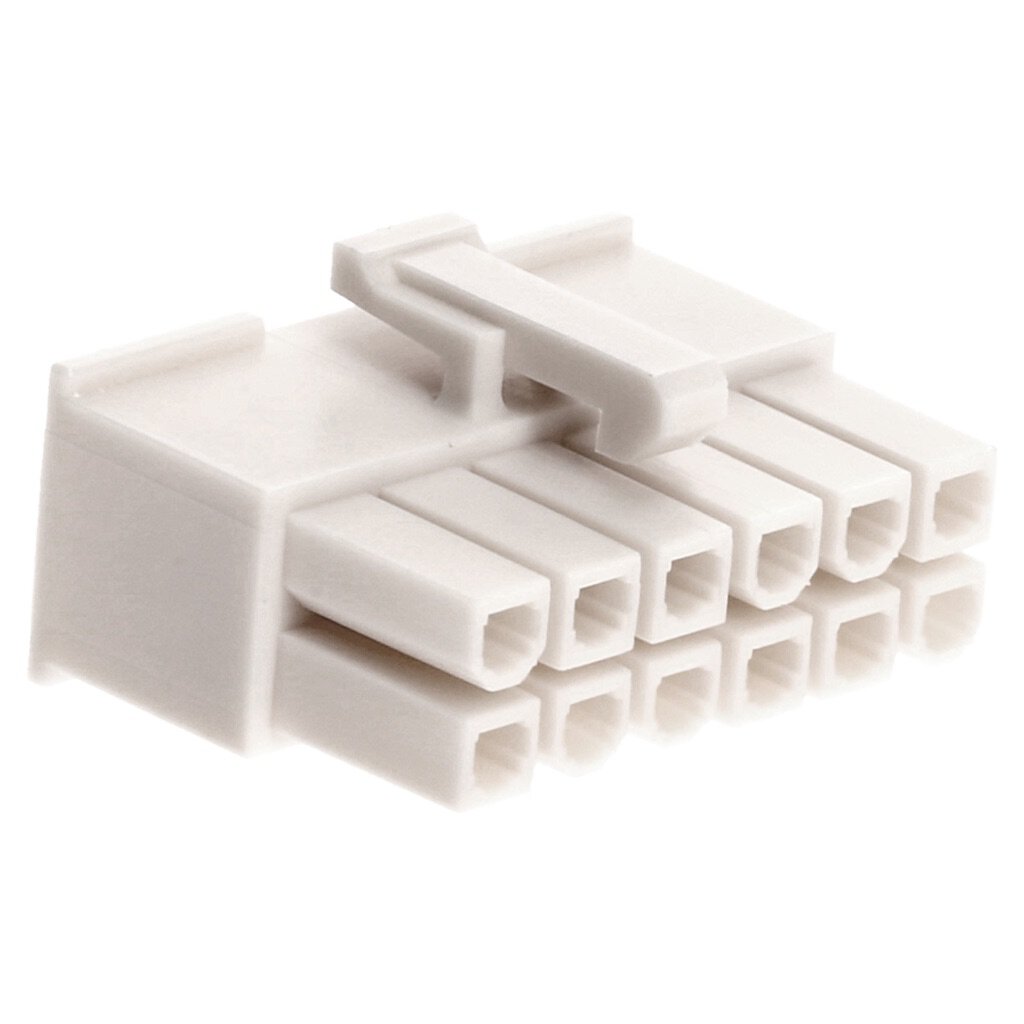

Mini-Fit Jr. Receptacle Housing, Dual Row, 12 Circuits, UL 94V-0, Natural
$0.32 EA
3550 in stock
| Weight | 0.002 lbs |
|---|---|
| Dimensions | 0.002 × 0.002 × 0.002 in |
